Product applications
Ribbed or paneled walls add grip and structural detail around the jar body. The wide opening provides filling and spoon clearance, while the shoulder design defines the practical label position.
The selected shape, dimensions and closure are documented in the product drawing and physical sample.

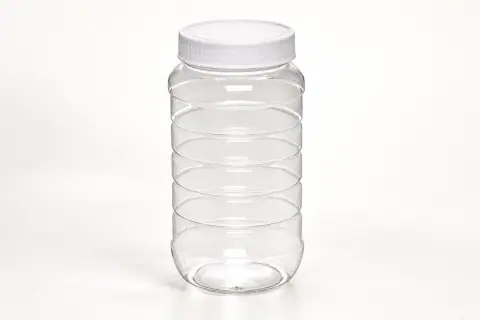

Ribbed Wide-Mouth PET Honey Jars
Wide-mouth PET honey jars with ribbed or paneled bodies for spoonable honey. The range combines accessible openings, defined label areas and matching closure options.
- PET
- 360–850 ml
- 6 options
TECHNICAL DETAILS
Sizes & Product Specifications
The size overview brings capacities, closures and available specifications together.
| Size option | Water capacity | Reference honey fill | Closure | Specifications |
|---|---|---|---|---|
| 750 ml | 750 ml | 1000 g | PP cap | View details ↓ |
| 730 ml | 730 ml | 1000 g | PP cap | View details ↓ |
| 720 ml · Option 1 | 720 ml | 1000 g | PP cap | View details ↓ |
| 850 ml | 850 ml | 1250 g | PP cap | View details ↓ |
| 720 ml · Option 2 | 720 ml | 1000 g | PP cap | View details ↓ |
| 360 ml | 360 ml | 500 g | PP cap | View details ↓ |
750 mlDimensions, closure & packing
CONTAINER & CLOSURE
750 ml
| Container material | PET |
|---|---|
| Water capacity | 750 ml |
| Reference honey fill | 1000 g |
| Body weight | 37.5 g |
| Closure material | PP cap |
| Cap weight | 7.5 g |
| Neck finish | 69-400 |
Dimensions & fit
| Overall height (with cap) | 175 mm |
|---|---|
| Body height (without cap) | 166 mm |
| Body diameter (D) | 84 mm |
| Mouth C (reference) | 69 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 150 units |
| Outer carton dimensions | 88.5 × 40.0 × 56.0 cm |
| Carton net weight | 7.00 kg |
| Carton gross weight | 8.50 kg |
730 mlDimensions, closure & packing
CONTAINER & CLOSURE
730 ml
| Container material | PET |
|---|---|
| Water capacity | 730 ml |
| Reference honey fill | 1000 g |
| Body weight | 33.5 g |
| Closure material | PP cap |
| Cap weight | 7.6 g |
| Neck finish | 69-400 |
Dimensions & fit
| Overall height (with cap) | 157 mm |
|---|---|
| Body height (without cap) | 155 mm |
| Body width (W) | 79 mm |
| Mouth C (reference) | 69 mm |
Order & shipping data
| Units per carton | 150 units |
|---|---|
| Outer carton dimensions | 85.0 × 37.5 × 51.5 cm |
| Carton net weight | 7.00 kg |
| Carton gross weight | 8.50 kg |
Gracepack will verify for 730 ml: MOQ.
720 ml · Option 1Dimensions, closure & packing
CONTAINER & CLOSURE
720 ml · Option 1
| Container material | PET |
|---|---|
| Water capacity | 720 ml |
| Reference honey fill | 1000 g |
| Body weight | 34 g |
| Closure material | PP cap |
| Cap weight | 9.5 g |
Dimensions & fit
| Overall height (with cap) | 168 mm |
|---|---|
| Body height (without cap) | 164 mm |
| Body diameter (D) | 84 mm |
| Mouth C (reference) | 69 mm |
Order & shipping data
| Units per carton | 150 units |
|---|---|
| Outer carton dimensions | 88.5 × 40.0 × 56.0 cm |
| Carton net weight | 7.20 kg |
| Carton gross weight | 8.70 kg |
Gracepack will verify for 720 ml · Option 1: full neck finish, MOQ.
850 mlDimensions, closure & packing
CONTAINER & CLOSURE
850 ml
| Container material | PET |
|---|---|
| Water capacity | 850 ml |
| Reference honey fill | 1250 g |
| Body weight | 34 g |
| Closure material | PP cap |
| Cap weight | 9.5 g |
Dimensions & fit
| Overall height (with cap) | 169 mm |
|---|---|
| Body height (without cap) | 168 mm |
| Body diameter (D) | 90 mm |
| Mouth C (reference) | 69 mm |
Order & shipping data
| Units per carton | 120 units |
|---|---|
| Outer carton dimensions | 97 × 35 × 56 cm |
| Carton net weight | 5.8 kg |
| Carton gross weight | 7.2 kg |
Gracepack will verify for 850 ml: full neck finish, MOQ.
720 ml · Option 2Dimensions, closure & packing
CONTAINER & CLOSURE
720 ml · Option 2
| Container material | PET |
|---|---|
| Water capacity | 720 ml |
| Reference honey fill | 1000 g |
| Body weight | 34 g |
| Closure material | PP cap |
| Cap weight | 9.5 g |
Dimensions & fit
| Overall height (with cap) | 166 mm |
|---|---|
| Body height (without cap) | 164 mm |
| Body diameter (D) | 82 mm |
| Mouth C (reference) | 69 mm |
Order & shipping data
| Units per carton | 150 units |
|---|---|
| Outer carton dimensions | 88.5 × 40.0 × 56.0 cm |
| Carton net weight | 7.20 kg |
| Carton gross weight | 8.70 kg |
Gracepack will verify for 720 ml · Option 2: full neck finish, MOQ.
360 mlDimensions, closure & packing
CONTAINER & CLOSURE
360 ml
| Container material | PET |
|---|---|
| Water capacity | 360 ml |
| Reference honey fill | 500 g |
| Body weight | 34 g |
| Closure material | PP cap |
| Cap weight | 9.5 g |
Dimensions & fit
| Overall height (with cap) | 104 mm |
|---|---|
| Body height (without cap) | 102 mm |
| Body diameter (D) | 75 mm |
| Mouth C (reference) | 69 mm |
Order & shipping data
| Units per carton | 250 units |
|---|---|
| Outer carton dimensions | 80.0 × 36.0 × 57.5 cm |
| Carton net weight | 12 kg |
| Carton gross weight | 13.5 kg |
Gracepack will verify for 360 ml: full neck finish, MOQ.
Capacity, Closure & Order Specification
The listed volume is water capacity. Gracepack verifies the working fill level and headspace with the proposed honey fill, then matches the full neck finish, cap and seal through the dimensioned drawing and assembled sample.
The quotation records tolerances, body and cap colors, the matched cap and liner, seal dimensions, stock status and final packing configuration. MOQ and carton data reflect the selected assembly and decoration.
APPLICATIONS & FILLING
Wide-Mouth Filling & Ribbed Jar Labeling
Packaging performance, filling considerations and presentation details for this product.
Filling & storage
Gracepack reviews the filling temperature, holding time and cooling method against the bottle and closure limits. The assembled pack is then validated under the intended filling conditions.
Approved storage conditions and stacking limits depend on the selected bottle, closure and filling process and are recorded with the product specification.
Label & presentation
Avoid bridging ribs with label edges; proof the artwork on the chosen jar surface.
CUSTOMIZATION & COMMERCIAL DETAILS
Customization & Ordering
Decoration & Design Options
| Printing / special finishes | Silk-screen printing, transfer decoration or special finishes are assessed for the selected surface and artwork. |
|---|---|
| New shape or embossing | Requires a design and tooling feasibility review; tooling rights and costs are confirmed in writing. |
| Packaging design | Review the wider jar footprint and assembled cap height against the proposed carton layout. |
Samples, Lead Times & Pricing
| Samples | Request samples for your selected product and size. Availability, any sample charge and courier cost are confirmed before dispatch. |
|---|---|
| Production planning | General production planning reference: 15–20 days. Your model, quantity, decoration and approvals determine the confirmed schedule. |
| Custom development | General custom-project planning reference: 4–6 weeks; new tooling and sampling are scheduled separately. |
| Price breakdown | Request body, cap, liner/seal, decoration, tooling and packing costs for the chosen assembly. |
| Quotation terms | Specify quantity, destination and preferred shipping terms. Currency, tax, freight, payment terms and validity are stated in the quote. |
Planning references are not a delivery commitment or a statement of stock availability.
QUALITY & DOCUMENTATION
Material Reports & Quality Checks
PET sample reports are available for review, including extractives, BPA and the specified PPWR substance tests. Confirm applicability to your selected body, resin and closure before ordering.
View certificates & test reports ↗Agree the inspection plan
- Appearance, dimensions, body weight and agreed tolerances.
- Bottle-to-cap fit, cap application and seal integrity.
- Check spoon access, filling nozzle clearance, cap application and the selected liner or seal with your honey.
- Filled-pack leakage and transport tests using the agreed procedure.
- Applicable food-contact documentation for the body, closure and liner.
Agree the required tests and acceptance criteria before ordering. Available reports apply to the samples and test conditions identified in each document.
Product Questions & Ordering
Answers about Ribbed Wide-Mouth PET Honey Jars, samples and quotation requirements.
Does the wider mouth determine the sealing method?
No. The cap, liner, neck geometry and filling process determine the sealing arrangement. Specify these for the exact jar model.
What should I send for a quotation?
Include the product name and selected capacity, your target honey fill, order quantity, decoration requirements and destination. We will confirm the proposed assembly and packing before quoting.
