Product applications

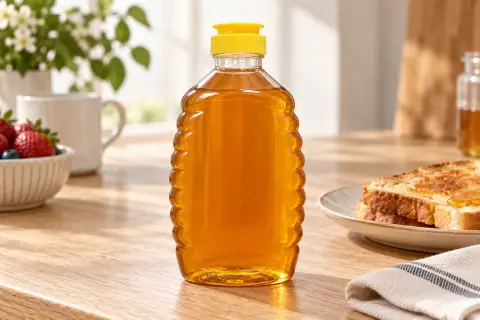

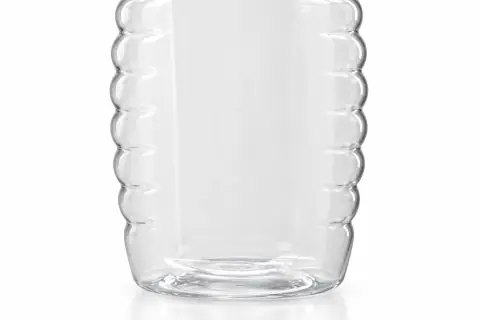

Ribbed walls add grip and visual texture to the bottle body. The different profiles support upright dispensing formats, while the model-specific closure determines outlet style and reclosure performance.
The selected shape, dimensions and closure are documented in the product drawing and physical sample.

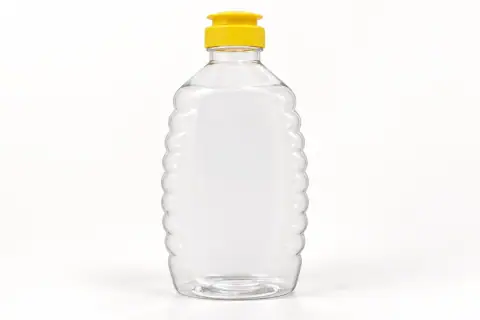

Ribbed PET Honey Bottle Series
Ribbed PET honey bottles in multiple capacities and body profiles, with model-specific neck finishes and closure options. The series supports coordinated squeeze-bottle ranges for different honey fill targets.
- PET
- 70–740 ml
- 9 options
TECHNICAL DETAILS
Sizes & Product Specifications
The size overview brings capacities, closures and available specifications together.
| Size option | Water capacity | Reference honey fill | Closure | Specifications |
|---|---|---|---|---|
| 740 ml | 740 ml | 1000 g | PP cap | View details ↓ |
| 180 ml | 180 ml | 250 g | PP cap | View details ↓ |
| 380 ml | 380 ml | 500 g | PP cap | View details ↓ |
| 200 ml | 200 ml | 250 g | PP cap | View details ↓ |
| 360 ml | 360 ml | 500 g | PP cap | View details ↓ |
| 70 ml | 70 ml | 100 g | PP cap | View details ↓ |
| 130 ml | 130 ml | 180 g | PP cap | View details ↓ |
| 330 ml | 330 ml | 450 g | PP cap | View details ↓ |
| 720 ml | 720 ml | 1000 g | PP cap | View details ↓ |
740 mlDimensions, closure & packing
CONTAINER & CLOSURE
740 ml
| Container material | PET |
|---|---|
| Water capacity | 740 ml |
| Reference honey fill | 1000 g |
| Body weight | 47.5 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 194 mm |
|---|---|
| Body height (without cap) | 184 mm |
| Body width (W) | 102 mm |
| Body depth (F) | 64 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
| Minimum order quantity | 10,000 pieces |
|---|---|
| Units per carton | 140 units |
| Outer carton dimensions | 73.0 × 52.5 × 47.5 cm |
Gracepack will verify for 740 ml: Remaining dimensions and shipping details are completed with the quotation.
180 mlDimensions, closure & packing
CONTAINER & CLOSURE
180 ml
| Container material | PET |
|---|---|
| Water capacity | 180 ml |
| Reference honey fill | 250 g |
| Body weight | 21.5 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 122 mm |
|---|---|
| Body height (without cap) | 111 mm |
| Body diameter (D) | 65 mm |
| Body depth (F) | 44 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
| Minimum order quantity | 50,000 pieces |
|---|---|
| Units per carton | 400 units |
| Outer carton dimensions | 62.0 × 46.0 × 45.0 cm |
| Carton net weight | 8.80 kg |
| Carton gross weight | 10.00 kg |
380 mlDimensions, closure & packing
CONTAINER & CLOSURE
380 ml
| Container material | PET |
|---|---|
| Water capacity | 380 ml |
| Reference honey fill | 500 g |
| Body weight | 30 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 154 mm |
|---|---|
| Body height (without cap) | 141 mm |
| Body width (W) | 78 mm |
| Body depth (F) | 57 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 270 units |
| Outer carton dimensions | 71.0 × 46.5 × 55.0 cm |
| Carton net weight | 8.10 kg |
| Carton gross weight | 9.60 kg |
200 mlDimensions, closure & packing
CONTAINER & CLOSURE
200 ml
| Container material | PET |
|---|---|
| Water capacity | 200 ml |
| Reference honey fill | 250 g |
| Body weight | 22.5 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 124 mm |
|---|---|
| Body height (without cap) | 112 mm |
| Body width (W) | 63 mm |
| Body depth (F) | 47 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
| Minimum order quantity | 20,000 pieces |
|---|---|
| Units per carton | 432 units |
| Outer carton dimensions | 75.0 × 45.5 × 43.5 cm |
| Carton net weight | 9.50 kg |
| Carton gross weight | 11.00 kg |
360 mlDimensions, closure & packing
CONTAINER & CLOSURE
360 ml
| Container material | PET |
|---|---|
| Water capacity | 360 ml |
| Reference honey fill | 500 g |
| Body weight | 27 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 152 mm |
|---|---|
| Body height (without cap) | 142 mm |
| Body diameter (D) | 82 mm |
| Body depth (F) | 51 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
| Minimum order quantity | 50,000 pieces |
|---|---|
| Units per carton | 180 units |
| Outer carton dimensions | 71.0 × 49.0 × 31.5 cm |
| Carton net weight | 5.90 kg |
| Carton gross weight | 7.40 kg |
70 mlDimensions, closure & packing
CONTAINER & CLOSURE
70 ml
| Container material | PET |
|---|---|
| Water capacity | 70 ml |
| Reference honey fill | 100 g |
| Body weight | 11.5 g |
| Closure material | PP cap |
| Cap weight | 4.5 g |
| Neck finish | 28-400 |
Dimensions & fit
| Overall height (with cap) | 92 mm |
|---|---|
| Body height (without cap) | 82 mm |
| Body diameter (D) | 45 mm |
| Body depth (F) | 33 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
Current minimum order and packing data for 70 ml are supplied with the quotation.
Gracepack will verify for 70 ml: MOQ, carton quantity, carton size.
130 mlDimensions, closure & packing
CONTAINER & CLOSURE
130 ml
| Container material | PET |
|---|---|
| Water capacity | 130 ml |
| Reference honey fill | 180 g |
| Body weight | 15 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 103 mm |
|---|---|
| Body height (without cap) | 91 mm |
| Body width (W) | 55 mm |
| Body depth (F) | 41 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
Current minimum order and packing data for 130 ml are supplied with the quotation.
Gracepack will verify for 130 ml: MOQ, carton quantity, carton size.
330 mlDimensions, closure & packing
CONTAINER & CLOSURE
330 ml
| Container material | PET |
|---|---|
| Water capacity | 330 ml |
| Reference honey fill | 450 g |
| Body weight | 27 g |
| Closure material | PP cap |
| Cap weight | 6 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 156 mm |
|---|---|
| Body height (without cap) | 140 mm |
| Body width (W) | 95 mm |
| Body depth (F) | 43 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
Current minimum order and packing data for 330 ml are supplied with the quotation.
Gracepack will verify for 330 ml: MOQ, carton quantity, carton size.
720 mlDimensions, closure & packing
CONTAINER & CLOSURE
720 ml
| Container material | PET |
|---|---|
| Water capacity | 720 ml |
| Reference honey fill | 1000 g |
| Body weight | 46.5 g |
| Closure material | PP cap |
| Cap weight | 10 g |
| Neck finish | 38-400 |
Dimensions & fit
| Overall height (with cap) | 188 mm |
|---|---|
| Body height (without cap) | 178 mm |
| Body width (W) | 100 mm |
| Body depth (F) | 65 mm |
| Mouth C (reference) | 38 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 106 units |
| Outer carton dimensions | 70.0 × 49.5 × 37.0 cm |
| Carton net weight | 6.0 kg |
| Carton gross weight | 7.50 kg |
Capacity, Closure & Order Specification
The listed volume is water capacity. Gracepack verifies the working fill level and headspace with the proposed honey fill, then matches the full neck finish, cap and seal through the dimensioned drawing and assembled sample.
The quotation records tolerances, body and cap colors, the matched cap and liner, seal dimensions, stock status and final packing configuration. MOQ and carton data reflect the selected assembly and decoration.
APPLICATIONS & FILLING
Ribbed Bottle Sizes & Label Panels
Packaging performance, filling considerations and presentation details for this product.
Filling & storage
Gracepack reviews the filling temperature, holding time and cooling method against the bottle and closure limits. The assembled pack is then validated under the intended filling conditions.
Approved storage conditions and stacking limits depend on the selected bottle, closure and filling process and are recorded with the product specification.
Label & presentation
Check which panels are smooth enough for artwork; the ribs and shoulders vary across the range.
CUSTOMIZATION & COMMERCIAL DETAILS
Customization & Ordering
Decoration & Design Options
| Printing / special finishes | Silk-screen printing, transfer decoration or special finishes are assessed for the selected surface and artwork. |
|---|---|
| New shape or embossing | Requires a design and tooling feasibility review; tooling rights and costs are confirmed in writing. |
| Packaging design | Use the packing data for the exact model instead of applying one carton count to the whole series. |
Samples, Lead Times & Pricing
| Samples | Request samples for your selected product and size. Availability, any sample charge and courier cost are confirmed before dispatch. |
|---|---|
| Production planning | General production planning reference: 15–20 days. Your model, quantity, decoration and approvals determine the confirmed schedule. |
| Custom development | General custom-project planning reference: 4–6 weeks; new tooling and sampling are scheduled separately. |
| Price breakdown | Request body, cap, liner/seal, decoration, tooling and packing costs for the chosen assembly. |
| Quotation terms | Specify quantity, destination and preferred shipping terms. Currency, tax, freight, payment terms and validity are stated in the quote. |
Planning references are not a delivery commitment or a statement of stock availability.
QUALITY & DOCUMENTATION
Material Reports & Quality Checks
PET sample reports are available for review, including extractives, BPA and the specified PPWR substance tests. Confirm applicability to your selected body, resin and closure before ordering.
View certificates & test reports ↗Agree the inspection plan
- Appearance, dimensions, body weight and agreed tolerances.
- Bottle-to-cap fit, cap application and seal integrity.
- Check the dispensing outlet, grip, cap operation and label panel on the selected model. Evaluate flow and resealing with your actual honey.
- Filled-pack leakage and transport tests using the agreed procedure.
- Applicable food-contact documentation for the body, closure and liner.
Agree the required tests and acceptance criteria before ordering. Available reports apply to the samples and test conditions identified in each document.
Product Questions & Ordering
Answers about Ribbed PET Honey Bottle Series, samples and quotation requirements.
Can all models in this series use one cap?
No common cap is assumed. The listed neck finishes vary, so confirm the complete bottle-and-cap combination for each selected model.
What should I send for a quotation?
Include the product name and selected capacity, your target honey fill, order quantity, decoration requirements and destination. We will confirm the proposed assembly and packing before quoting.
