Product applications
Compare three faceted glass formats for smaller branded packs and gifts. Select the size first, then place the label within its individual flat faces.
The selected shape, dimensions and closure are documented in the product drawing and physical sample.

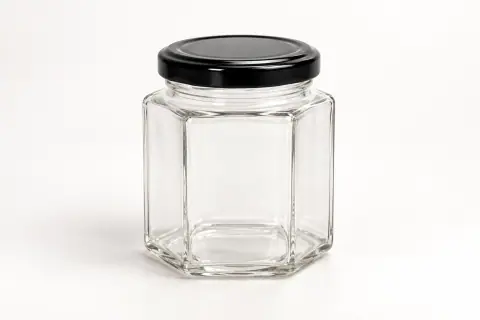

Hexagon Glass Honey Jar Series
Six-sided glass honey jars with flat label panels and metal lid options. Three sizes support a coordinated branded or gift range, including a 250 g reference honey fill option.
- Glass
- 85–180 ml
- 3 options
TECHNICAL DETAILS
Sizes & Product Specifications
The size overview brings capacities, closures and available specifications together.
| Size option | Water capacity | Reference honey fill | Closure | Specifications |
|---|---|---|---|---|
| 85 ml | 85 ml | 120 g | Tin cap | View details ↓ |
| 100 ml | 100 ml | 140 g | Tin cap | View details ↓ |
| 180 ml | 180 ml | 250 g | Tin cap | View details ↓ |
85 mlDimensions, closure & packing
CONTAINER & CLOSURE
85 ml
| Container material | Glass |
|---|---|
| Water capacity | 85 ml |
| Reference honey fill | 120 g |
| Body weight | 89.5 g |
| Closure material | Tin cap |
| Cap weight | 5 g |
Dimensions & fit
| Overall height (with cap) | 73 mm |
|---|---|
| Body height (without cap) | 71 mm |
| Body diameter (D) | 50 mm |
| Mouth C (reference) | 45 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 162 units |
| Carton net weight | 16.20 kg |
| Carton gross weight | 17.70 kg |
Gracepack will verify for 85 ml: full neck finish, carton size.
100 mlDimensions, closure & packing
CONTAINER & CLOSURE
100 ml
| Container material | Glass |
|---|---|
| Water capacity | 100 ml |
| Reference honey fill | 140 g |
| Body weight | 103 g |
| Closure material | Tin cap |
| Cap weight | 5.5 g |
Dimensions & fit
| Overall height (with cap) | 81 mm |
|---|---|
| Body height (without cap) | 80 mm |
| Body diameter (D) | 52 mm |
| Mouth C (reference) | 45 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 120 units |
| Carton net weight | 12.72 kg |
| Carton gross weight | 14.22 kg |
Gracepack will verify for 100 ml: full neck finish, carton size.
180 mlDimensions, closure & packing
CONTAINER & CLOSURE
180 ml
| Container material | Glass |
|---|---|
| Water capacity | 180 ml |
| Reference honey fill | 250 g |
| Body weight | 147.5 g |
| Closure material | Tin cap |
| Cap weight | 7 g |
Dimensions & fit
| Overall height (with cap) | 87 mm |
|---|---|
| Body height (without cap) | 85 mm |
| Body diameter (D) | 62 mm |
| Mouth C (reference) | 55 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 120 units |
| Outer carton dimensions | 57.0 × 33.5 × 27.5 cm |
| Carton net weight | 17.04 kg |
| Carton gross weight | 18.54 kg |
Gracepack will verify for 180 ml: full neck finish.
Capacity, Closure & Order Specification
The listed volume is water capacity. Gracepack verifies the working fill level and headspace with the proposed honey fill, then matches the full neck finish, cap and seal through the dimensioned drawing and assembled sample.
The quotation records tolerances, body and cap colors, the matched cap and liner, seal dimensions, stock status and final packing configuration. MOQ and carton data reflect the selected assembly and decoration.
APPLICATIONS & FILLING
Hexagon Jar Labeling & Brand Presentation
Packaging performance, filling considerations and presentation details for this product.
Filling & storage
Filling temperature, heating and cooling rates are evaluated with the selected jar and lid. The complete assembly, rather than the glass body alone, determines suitability for a thermal process.
Approved storage conditions and stacking limits depend on the selected bottle, closure and filling process and are recorded with the product specification.
Label & presentation
Give each size its own label dimensions; leave a margin before the corners so the label does not bridge the facets.
CUSTOMIZATION & COMMERCIAL DETAILS
Customization & Ordering
Decoration & Design Options
| Printing / special finishes | Silk-screen printing, transfer decoration or special finishes are assessed for the selected surface and artwork. |
|---|---|
| New shape or embossing | Requires a design and tooling feasibility review; tooling rights and costs are confirmed in writing. |
| Packaging design | Review separation between glass faces and lid clearance in a mixed-size gift or shipping box. |
Samples, Lead Times & Pricing
| Samples | Request samples for your selected product and size. Availability, any sample charge and courier cost are confirmed before dispatch. |
|---|---|
| Production planning | General production planning reference: 15–20 days. Your model, quantity, decoration and approvals determine the confirmed schedule. |
| Custom development | General custom-project planning reference: 4–6 weeks; new tooling and sampling are scheduled separately. |
| Price breakdown | Request body, cap, liner/seal, decoration, tooling and packing costs for the chosen assembly. |
| Quotation terms | Specify quantity, destination and preferred shipping terms. Currency, tax, freight, payment terms and validity are stated in the quote. |
Planning references are not a delivery commitment or a statement of stock availability.
QUALITY & DOCUMENTATION
Material Reports & Quality Checks
Request glass-body and lid documentation for the selected supplier and assembly. Plastic test reports and the plastic manufacturing scope of ISO 22000 do not certify this glass jar.
View certificates & test reports ↗Agree the inspection plan
- Appearance, dimensions, body weight and agreed tolerances.
- Rim condition, lid engagement and the selected seal.
- Check the glass rim, matching lid, sealing surface and filled-pack protection. Approve dividers and the complete gift or shipping pack.
- Filled-pack leakage and transport tests using the agreed procedure.
- Applicable food-contact documentation for the body, closure and liner.
Agree the required tests and acceptance criteria before ordering. Available reports apply to the samples and test conditions identified in each document.
Product Questions & Ordering
Answers about Hexagon Glass Honey Jar Series, samples and quotation requirements.
Can one label size cover all three jars?
Each jar has its own dimensions. Keep the visual design consistent, but size and proof the label separately on each chosen model.
What should I send for a quotation?
Include the product name and selected capacity, your target honey fill, order quantity, decoration requirements and destination. We will confirm the proposed assembly and packing before quoting.
