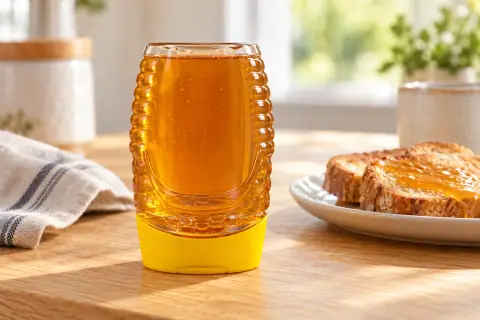

Product applications
Cap-down storage keeps honey near the dispensing outlet and supports convenient serving. Base stability, valve response and clean reclosure depend on the selected body-and-cap assembly.
The selected shape, dimensions and closure are documented in the product drawing and physical sample.

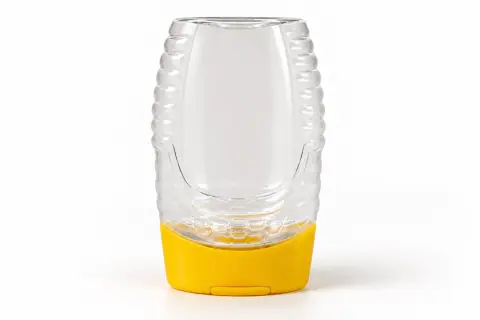

Compact Inverted Honey Bottles
Compact PET honey bottles designed for cap-down presentation and convenient dispensing. The series includes several body profiles, capacities and matched closure arrangements.
- PET
- 250–380 ml
- 8 options
TECHNICAL DETAILS
Sizes & Product Specifications
The size overview brings capacities, closures and available specifications together.
| Size option | Water capacity | Reference honey fill | Closure | Specifications |
|---|---|---|---|---|
| 288 ml | 288 ml | 400 g | PP cap | View details ↓ |
| 290 ml | 290 ml | 400 g | PP cap | View details ↓ |
| 380 ml | 380 ml | 500 g | PP cap | View details ↓ |
| 280 ml | 280 ml | 400 g | PP cap | View details ↓ |
| 340 ml · Option 1 | 340 ml | 480 g | PP cap | View details ↓ |
| 320 ml | 320 ml | On request | PP cap | View details ↓ |
| 250 ml | 250 ml | On request | PP cap | View details ↓ |
| 340 ml · Option 2 | 340 ml | 460 g | PP cap | View details ↓ |
288 mlDimensions, closure & packing
CONTAINER & CLOSURE
288 ml
| Container material | PET |
|---|---|
| Water capacity | 288 ml |
| Reference honey fill | 400 g |
| Body weight | 23 g |
| Closure material | PP cap |
| Cap weight | 10 g |
| Neck finish | 28-400 |
Dimensions & fit
| Body diameter (D) | 62 mm |
|---|---|
| Body depth (F) | 44 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Minimum order quantity | 10,000 pieces |
|---|---|
| Units per carton | 288 units |
| Outer carton dimensions | 74.5 × 48.5 × 43.0 cm |
| Carton net weight | 6.70 kg |
| Carton gross weight | 8.20 kg |
Gracepack will verify for 288 ml: assembled height, body height. Remaining dimensions and shipping details are completed with the quotation.
290 mlDimensions, closure & packing
CONTAINER & CLOSURE
290 ml
| Container material | PET |
|---|---|
| Water capacity | 290 ml |
| Reference honey fill | 400 g |
| Body weight | 27.5 g |
| Closure material | PP cap |
| Cap weight | 10 g |
| Neck finish | 28-400 |
Dimensions & fit
| Overall height (with cap) | 143 mm |
|---|---|
| Body height (without cap) | 140 mm |
| Body width (W) | 75 mm |
| Body depth (F) | 45 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 300 units |
| Outer carton dimensions | 76.5 × 43.5 × 47.0 cm |
| Carton net weight | 8.10 kg |
| Carton gross weight | 9.30 kg |
380 mlDimensions, closure & packing
CONTAINER & CLOSURE
380 ml
| Container material | PET |
|---|---|
| Water capacity | 380 ml |
| Reference honey fill | 500 g |
| Body weight | 29 g |
| Closure material | PP cap |
| Cap weight | 10 g |
| Neck finish | 28-400 |
Dimensions & fit
| Overall height (with cap) | 160 mm |
|---|---|
| Body height (without cap) | 154 mm |
| Body width (W) | 78 mm |
| Body depth (F) | 52 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Units per carton | 270 units |
|---|---|
| Outer carton dimensions | 79.0 × 47.5 × 45.0 cm |
| Carton net weight | 7.80 kg |
| Carton gross weight | 9.30 kg |
Gracepack will verify for 380 ml: MOQ.
280 mlDimensions, closure & packing
CONTAINER & CLOSURE
280 ml
| Container material | PET |
|---|---|
| Water capacity | 280 ml |
| Reference honey fill | 400 g |
| Body weight | 26 g |
| Closure material | PP cap |
| Cap weight | 10 g |
| Neck finish | 28-400 |
Dimensions & fit
| Overall height (with cap) | 150 mm |
|---|---|
| Body height (without cap) | 143 mm |
| Body diameter (D) | 82 mm |
| Body depth (F) | 52 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Units per carton | 180 units |
|---|---|
| Outer carton dimensions | 59.0 × 39.5 × 40.5 cm |
| Carton net weight | 4.70 kg |
| Carton gross weight | 6.20 kg |
Gracepack will verify for 280 ml: MOQ.
340 ml · Option 1Dimensions, closure & packing
CONTAINER & CLOSURE
340 ml · Option 1
| Container material | PET |
|---|---|
| Water capacity | 340 ml |
| Reference honey fill | 480 g |
| Body weight | 29.5 g |
| Closure material | PP cap |
| Cap weight | 10 g |
| Neck finish | 28-400 |
Dimensions & fit
| Overall height (with cap) | 155 mm |
|---|---|
| Body diameter (D) | 86 mm |
| Body depth (F) | 48 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Units per carton | 180 units |
|---|---|
| Outer carton dimensions | 72 × 50 × 33 cm |
| Carton net weight | 7.02 kg |
| Carton gross weight | 8.52 kg |
Gracepack will verify for 340 ml · Option 1: body height, MOQ. Remaining dimensions and shipping details are completed with the quotation.
320 mlDimensions, closure & packing
CONTAINER & CLOSURE
320 ml
| Container material | PET |
|---|---|
| Water capacity | 320 ml |
| Body weight | 27.5 g |
| Closure material | PP cap |
| Cap weight | 9 g |
Dimensions & fit
| Overall height (with cap) | 165 mm |
|---|---|
| Body height (without cap) | 158 mm |
| Body width (W) | 81 mm |
| Body depth (F) | 40 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Minimum order quantity | 5,000 pieces |
|---|---|
| Units per carton | 336 units |
| Outer carton dimensions | 71.0 × 51.0 × 48.0 cm |
| Carton net weight | 9.20 kg |
| Carton gross weight | 10.70 kg |
Gracepack will verify for 320 ml: full neck finish, honey fill.
250 mlDimensions, closure & packing
CONTAINER & CLOSURE
250 ml
| Container material | PET |
|---|---|
| Water capacity | 250 ml |
| Body weight | 19.5 g |
| Closure material | PP cap |
| Cap weight | 8 g |
Dimensions & fit
| Overall height (with cap) | 135 mm |
|---|---|
| Body height (without cap) | 130 mm |
| Body width (W) | 73 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Minimum order quantity | 10,000 pieces |
|---|---|
| Units per carton | 440 units |
| Outer carton dimensions | 71.0 × 51.0 × 48.0 cm |
| Carton net weight | 8.60 kg |
| Carton gross weight | 9.60 kg |
Gracepack will verify for 250 ml: full neck finish, honey fill.
340 ml · Option 2Dimensions, closure & packing
CONTAINER & CLOSURE
340 ml · Option 2
| Container material | PET |
|---|---|
| Water capacity | 340 ml |
| Reference honey fill | 460 g |
| Body weight | 26 g |
| Closure material | PP cap |
| Cap weight | 11 g |
Dimensions & fit
| Overall height (with cap) | 154 mm |
|---|---|
| Body height (without cap) | 147 mm |
| Body diameter (D) | 84 mm |
| Mouth C (reference) | 28 mm |
Order & shipping data
| Units per carton | 270 units |
|---|---|
| Outer carton dimensions | 79.0 × 47.5 × 45.0 cm |
Gracepack will verify for 340 ml · Option 2: full neck finish, MOQ. Remaining dimensions and shipping details are completed with the quotation.
Capacity, Closure & Order Specification
The listed volume is water capacity. Gracepack verifies the working fill level and headspace with the proposed honey fill, then matches the full neck finish, cap and seal through the dimensioned drawing and assembled sample.
The quotation records tolerances, body and cap colors, the matched cap and liner, seal dimensions, stock status and final packing configuration. MOQ and carton data reflect the selected assembly and decoration.
APPLICATIONS & FILLING
Cap-Down Honey Dispensing & Label Orientation
Packaging performance, filling considerations and presentation details for this product.
Filling & storage
Gracepack reviews the filling temperature, holding time and cooling method against the bottle and closure limits. The assembled pack is then validated under the intended filling conditions.
Approved storage conditions and stacking limits depend on the selected bottle, closure and filling process and are recorded with the product specification.
Label & presentation
Orient the artwork for the pack’s cap-down shelf position and check front and rear label areas.
CUSTOMIZATION & COMMERCIAL DETAILS
Customization & Ordering
Decoration & Design Options
| Printing / special finishes | Silk-screen printing, transfer decoration or special finishes are assessed for the selected surface and artwork. |
|---|---|
| New shape or embossing | Requires a design and tooling feasibility review; tooling rights and costs are confirmed in writing. |
| Packaging design | Approve the shipping orientation and closure protection for the selected assembled pack. |
Samples, Lead Times & Pricing
| Samples | Request samples for your selected product and size. Availability, any sample charge and courier cost are confirmed before dispatch. |
|---|---|
| Production planning | General production planning reference: 15–20 days. Your model, quantity, decoration and approvals determine the confirmed schedule. |
| Custom development | General custom-project planning reference: 4–6 weeks; new tooling and sampling are scheduled separately. |
| Price breakdown | Request body, cap, liner/seal, decoration, tooling and packing costs for the chosen assembly. |
| Quotation terms | Specify quantity, destination and preferred shipping terms. Currency, tax, freight, payment terms and validity are stated in the quote. |
Planning references are not a delivery commitment or a statement of stock availability.
QUALITY & DOCUMENTATION
Material Reports & Quality Checks
PET sample reports are available for review, including extractives, BPA and the specified PPWR substance tests. Confirm applicability to your selected body, resin and closure before ordering.
View certificates & test reports ↗Agree the inspection plan
- Appearance, dimensions, body weight and agreed tolerances.
- Bottle-to-cap fit, cap application and seal integrity.
- Check cap-down standing stability, outlet flow, valve operation if specified, resealing and leakage with the actual honey.
- Filled-pack leakage and transport tests using the agreed procedure.
- Applicable food-contact documentation for the body, closure and liner.
Agree the required tests and acceptance criteria before ordering. Available reports apply to the samples and test conditions identified in each document.
Product Questions & Ordering
Answers about Compact Inverted Honey Bottles, samples and quotation requirements.
Is every inverted bottle supplied with a silicone valve?
The series name does not specify a valve. Ask for the exact closure assembly and test any proposed valve with your honey before ordering.
What should I send for a quotation?
Include the product name and selected capacity, your target honey fill, order quantity, decoration requirements and destination. We will confirm the proposed assembly and packing before quoting.
